SoundTools SSDMX Remote End DMX Cable Tester

Designed to make your life easier, especially on dark stages, the Sound Tools DMX Sniffer/Sender quickly, easily, and accurately tests DMX cables for all possible faults and then returns the results instantly via easy-to-see LEDs. The separate sniffer and sender units allow you to test cables where they lie, eliminating the need to have the ends in close proximity.

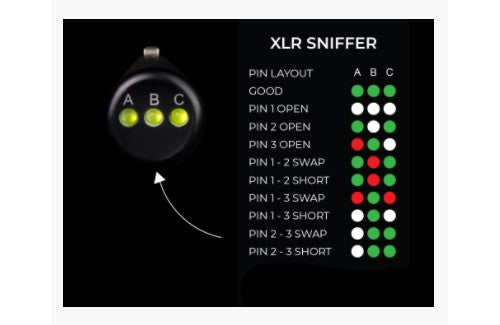

The SSDMX tests your cable or fixture and renders a verdict in red and green LEDs that can be matched to the included color code sticker. All green means all good, while a combination of red or no LED denotes shorts, swaps, and open pins. This allows for speedy accurate repair or replacement if needed.

The DMX Sniffer/Senders are all analog units housed in rugged aluminum with a matte finish. They maintain long battery life and are covered by a Lifetime warranty.

SoundTools SSDMX Includes:

• One sniffer
• One sender
• Color code sheet
• User documentation

SoundTools SSDMX Features:

• Know quickly whether it’s the cable or the fixture
• Portable, compact testers for quick diagnosis of DMX cables
• High-quality machined aluminum
• LED readout sticker chart included

SoundTools SSDMX Specifications:

• Height x Width x Depth: 4.5 in (114.3mm) x 3 in (76.2mm) x 1.5 in (38.1mm)
• Weight: 5 oz (.141 KG)
• SYSTEM REQUIREMENTS: Tests 5pin DMX cables
• TECHNICAL SPECIFICATIONS
  • Battery: A23
  • Readout: Green/Red LED
• DOCUMENTATION
  • Color Code Sheet
  • Instructions
• WARRANTY INFORMATION: Lifetime Happy Human Warranty
